Cross-Checking Architectural, Structural, and MEP Sheets

This content is produced by Pass The CSLB, an independent audio-first study companion for busy California B General candidates. I build these lessons from official CSLB study-guide topics and reputable source-backed California materials so you can study on the go. This is exam-prep reinforcement, not legal, professional, engineering, or job-specific advice. Exam content is set by PSI and the CSLB and may change, so always verify current requirements against official CSLB materials. No exam outcome is guaranteed. Now let's get into it.

This episode covers cross-checking architectural, structural, and MEP sheets, including gridlines, wall types, beam locations, duct paths, chases, ceiling heights, fireblocking, shaft enclosures, shop drawings, RFIs, and the contractor design limits that protect your license. This matters because official preparation resources identify plans, specifications, shop drawings, error identification, and project coordination as testable General B planning and estimating material.

I want you to picture an old drafting room with a glowing light table. The architectural sheet is on the bottom. The structural sheet is laid over it. The MEP sheets go on top. When the edges line up, the building starts to become 3D in your head. When the edges do not line up, that is not a small paperwork problem. That is a warning that the field layout, the estimate, the schedule, and the inspection path may all be built on sand.

The first thing I check is not the duct, not the sink, not the ceiling grid, and not the cabinet line. I check the gridlines. Gridlines are the registration marks of the whole plan set. They are like the snap line on a slab before the walls go up. If the snap line is wrong, everything that follows can look neat and still be wrong. On plans, the gridlines let the architect, structural engineer, and mechanical designer speak the same location language. Column centerlines, bearing walls, beams, openings, chases, and equipment all use that common language.

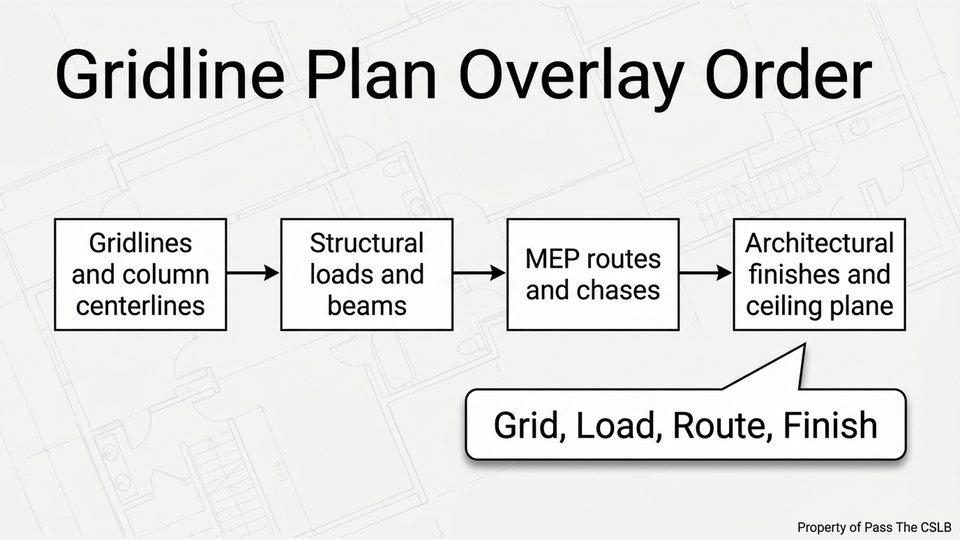

Looking at this first chart, I want you to see the order. Start with gridlines. Then compare structural columns and beams. Then compare architectural walls and ceilings. Then compare MEP routes. Only after those layers agree do I trust a dimension enough to estimate, lay out, or coordinate a trade.

The memory phrase I use is simple: grid, load, route, finish. Grid means the shared coordinate system. Load means beams, columns, shear walls, bearing walls, and foundations. Route means ducts, pipes, conduit, cable tray, vents, and drains. Finish means the visible architectural result, including walls, ceilings, soffits, doors, and clearances. If you reverse that order, you can get fooled. A finish plan may look clean while a duct is trying to occupy the same space as a beam. A reflected ceiling plan may show a beautiful flat lid while the structural section says there is no room above it.

This is where experienced contractors have an advantage. You already know buildings are not paper. Gravity does not care that the architectural sheet looks better. Airflow does not care that the corridor ceiling is drawn flat. Drainage does not care that a wall was framed too shallow. Cross-checking is the discipline of making the drawings answer to physical reality before the crew pays for the mistake.

Here is the jobsite version. I see a corridor on the architectural plan. It shows a clean ceiling line. I look at the structural sheet and find a deep beam crossing that corridor. Then I look at the mechanical sheet and see a supply duct crossing the beam. If the duct has to pass under the beam, the finished ceiling may need to drop. That drop is not just an appearance issue. It can become a code issue. In a commercial or general building, CBC Section 1208.2 gives a minimum ceiling height of 7 ft. 6 in. for occupiable spaces, habitable spaces, and corridors. The same section gives 7 ft. for bathrooms, toilet rooms, kitchens, storage rooms, and laundry rooms. So when a duct and beam fight over the same vertical space, I am not asking whether the ceiling looks nice. I am asking whether the plan still fits the California height rule.

I like the phrase, the ceiling is where every hidden decision finally shows up. The architect may draw a line. The structural engineer may place a beam. The mechanical designer may route a duct. The electrician may need lights. The fire sprinkler layout may need coverage. All of that ends at the ceiling plane. If the contractor does not coordinate it early, the building inspector may be the first person to say the math does not work. That is the most expensive time to learn geometry.

Now let me move from the ceiling to the wall. The common mistake is thinking a wall type is only an architectural label. It is not. A wall type is a physical container. It has depth, fire rating, finish layers, framing material, sound requirements, insulation, and sometimes structural meaning. MEP systems do not pass through drawings. They pass through real cavities.

A classic example is a plumbing stack shown inside a standard 2x4 partition. A working contractor immediately thinks about actual dimensions. A 2x4 stud is not 4 in. deep. Its actual depth is 3 1/2 in. A 4 in. plastic waste pipe has an outside diameter larger than 4 in. That is 10 pounds of pipe in a 5 pound wall. If I let that go to the field, the framer builds the partition, the plumber opens it up, the plates get chewed, the fireblocking gets compromised, and suddenly everyone is arguing about whose drawing was right.

The right move is not to tell the plumber to make it fit. The right move is to flag the conflict. Maybe the wall type needs to become a 2x6 wall. Maybe the design needs a furred chase. Maybe the bathrooms need a stack relocation. But that design answer has to come through the proper channel. The General B contractor coordinates and builds. I do not secretly redesign structural, fire rated, or mechanical systems just because the drawings made a promise the building cannot keep.

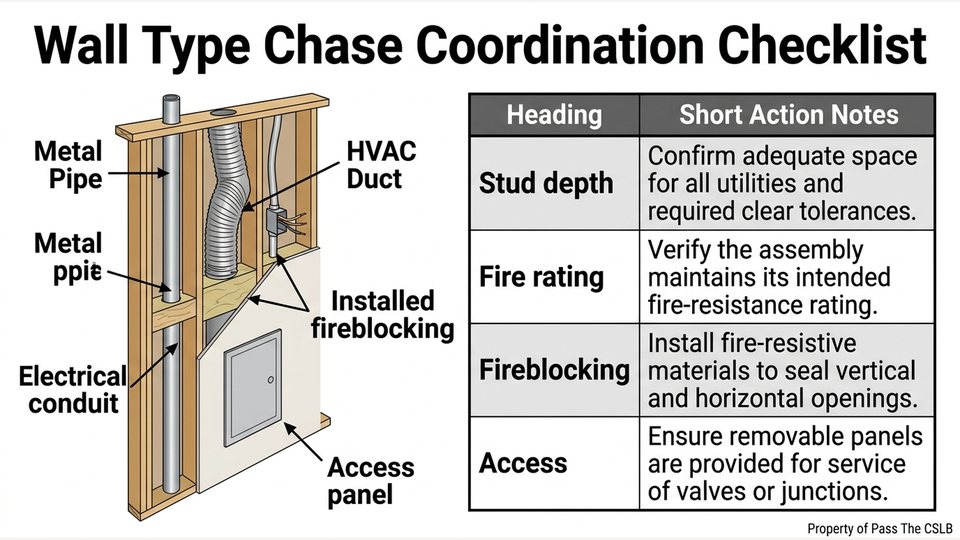

This second chart compares the wall and chase checks I want you to remember. Wall depth must match pipe, duct, and conduit space. Fire rating must match the wall type and the penetration. Fireblocking must still be possible. Access panels must not destroy the rated assembly. If any of those fail, the issue needs a formal question before construction proceeds.

This wall review matters for fire safety too. Concealed spaces can behave like chimneys. Fire loves hidden vertical paths because heat rises, gases move fast, and a small opening can feed flame into a wall cavity or chase. CRC Section R302.11 requires fireblocking in concealed spaces of stud walls and partitions vertically at ceiling and floor levels, and horizontally at intervals not exceeding 10 ft. I remember it as cap the ends and break the run. Cap the ends at the floor and ceiling. Break the run every 10 ft.

That rule is not paperwork trivia. It is about interrupting the draft path. In an open stud bay, fire can race upward and sideways behind the finished surface before anyone sees it. Fireblocking slows that hidden movement. It gives occupants more time. It gives firefighters a more predictable building. It also gives the inspector a clear thing to verify before the wall is closed.

A chase is different from ordinary fireblocking. I want you to keep those concepts separate. Fireblocking is like putting stops inside a small hidden airway. A shaft enclosure is like building a rated tunnel around a major vertical opening. Under CBC Section 713.4, shaft enclosures connecting 4 or more stories need not less than a 2 hour fire resistance rating. Shaft enclosures connecting fewer than 4 stories need not less than a 1 hour rating, and not less than the rating of the floor assembly penetrated. My memory phrase is 4 floors, 2 hours; fewer floors, 1 hour, but never weaker than the floor.

Ceiling heights deserve their own memory shelf because commercial and residential rules are easy to mix up. In commercial and general buildings, think 7 ft. 6 in. for occupied and corridor spaces, and 7 ft. for service type rooms like bathrooms, toilet rooms, kitchens, storage rooms, and laundry rooms. In 1 and 2 family dwellings under the CRC, habitable space and hallways are 7 ft. minimum. Residential bathrooms, toilet rooms, and laundry rooms are 6 ft. 8 in. minimum.

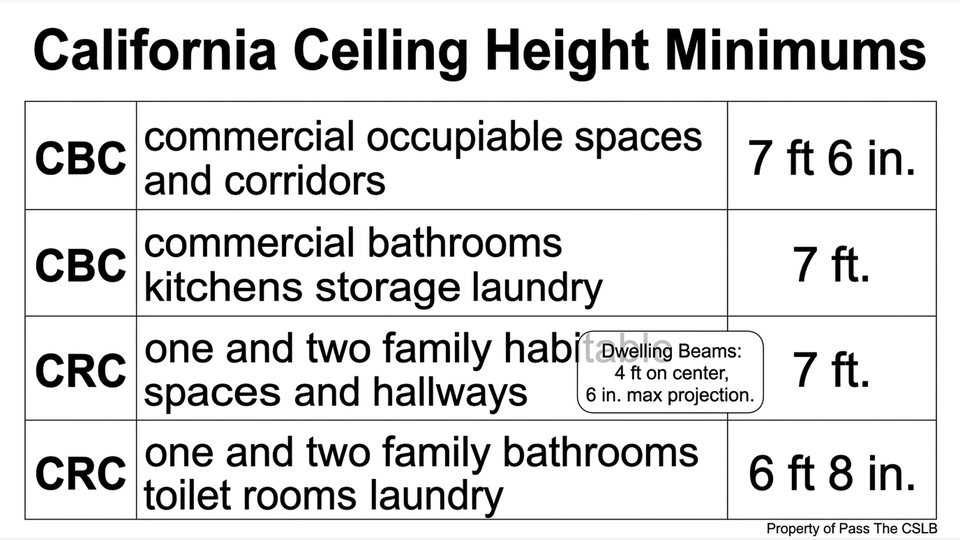

This third chart puts the ceiling height numbers side by side. For commercial review, remember 7 ft. 6 in. for occupiable spaces and corridors, and 7 ft. for bathrooms, kitchens, storage, and laundry. For residential review, remember 7 ft. for habitable spaces and hallways, and 6 ft. 8 in. for bathrooms, toilet rooms, and laundry rooms.

There is also an important beam exception in dwellings. Beams or girders spaced not less than 4 ft. on center may project not more than 6 in. below the required ceiling height. I do not treat that as permission to ignore layout. I treat it as a narrow rule to check carefully. The point is that a limited beam projection is different from a whole dropped ceiling caused by an uncoordinated duct run.

Here is the analogy. A beam projection is like one speed bump in the road. A dropped soffit running through a room is like lowering the whole bridge clearance. One may be allowed within limits. The other can make the room fail the height requirement. That is why the plan reviewer in your head has to ask, is this a local projection, or is this the finished ceiling plane?

I also want you to notice how estimating connects to this. If the plan shows a flat ceiling but the coordinated reality requires soffits, access panels, extra framing, fire rated board, duct rerouting, or changed lighting, the estimate changes. Cross-checking is not only about avoiding failed inspections. It is about pricing the job honestly before the work starts. A bad plan review can become a bad bid, and a bad bid becomes a fight about change orders.

Now let me talk about sheet conflicts and responsibility. The most dangerous sentence in plan review is, I will just fix it in the field. That sentence can be harmless when the issue is means and methods, like sequencing a delivery or choosing how to brace temporary work within safe practice. But it can become a license problem when the issue is structural design, fire rated construction, required clearances, or code compliance.

The California Business and Professions Code draws a boundary between construction work and licensed design responsibility. A contractor may prepare shop drawings for work the contractor is contracted to perform. That is normal coordination. A contractor may also design certain electrical or mechanical systems the contractor will install, within the statutory limits. But that does not mean a General B contractor can independently redesign structural load paths, cut major structural members, relocate beams, or change engineered fire life safety assemblies outside the legal exemptions.

Shop drawings are not magic permission slips. A shop drawing translates the design intent into fabrication and installation detail. It can show how a cabinet is built, how a railing is fabricated, how duct sections are assembled, or how equipment supports are arranged according to the approved design. It does not turn the contractor into the structural engineer of record. My memory phrase is shop drawings detail the work; they do not redesign the building.

This is why the Request for Information matters. I do not think of it as paperwork. I think of it as a liability shield. A good RFI says, here is the drawing conflict, here is the location, here is the code or constructability concern, and here is the decision I need from the design professional. It documents that the contractor saw the issue before building the mistake. It also puts the design answer back where it belongs.

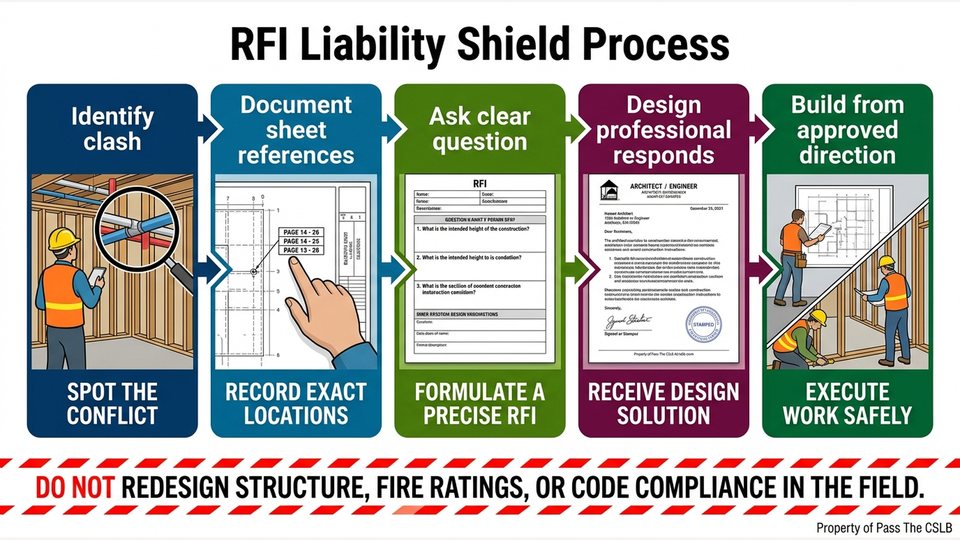

This fourth chart shows the RFI path. First, identify the clash. Second, document the sheet references and location. Third, ask a clear question. Fourth, wait for the architect or engineer response. Fifth, build only from the approved response, revised drawing, or formal change document.

Let me give you a real field picture. A mechanical drawing routes a duct through a concrete shear wall. The architectural sheet shows a fire damper. The structural sheet does not show an opening or reinforcing around that penetration. Nobody on the crew gets to say, just leave a hole and patch around it. That wall may be part of a lateral force resisting system. The rebar pattern, opening size, edge distance, and fire protection all matter. The contractor should submit the question and wait for the design professional to resolve it.

On some California public school and public works projects, a design change after an RFI can lead to a Construction Change Document. A Category A change affects structural, access, or fire life safety items and needs formal Division of the State Architect approval. A Category B change does not affect those safety elements. You do not need to become a public works specialist for this concept to matter. The exam prep lesson is the same: when the conflict touches structure, access, or fire life safety, the answer belongs in the formal approval path.

I want to pull this together with a step by step mental routine you can use when studying and when reviewing real plans. First, anchor the gridlines. If the grids and column centerlines do not match across disciplines, stop trusting the overlay. Second, trace the load path. Find beams, girders, columns, bearing walls, shear walls, and foundations before you judge whether a route is possible. Third, trace the routes. Follow ducts, waste lines, vents, conduits, panels, equipment, and chases. Fourth, test the finish. Ask what the ceiling, wall, door, access panel, and inspection condition will actually become. Fifth, protect the boundary. If the fix changes design intent, structure, fire rating, access, or code compliance, write the formal question instead of freelancing the answer.

Here is the short version I want in your head: line it up, find the load, follow the route, check the finish, send the question. That one sentence captures the General B role. You coordinate enough to catch the problem. You do not pretend the contractor license is a structural engineering license.

The architectural precedence fallacy is worth naming. Some people assume the architectural plan automatically wins because it is the most readable or because it shows the finished condition. That is not how buildings work. The architectural plan may show what the owner wants to see. The structural plan shows how gravity gets to the ground. The mechanical and plumbing plans show how air and water move. If those disagree, the winner is not the prettiest sheet. The winner is the coordinated design response issued by the proper professional.

I also want you to be careful with the opposite mistake. Do not assume the structural sheet wins every practical decision either. The structural sheet may show the beam, but it may not show every duct hanger, access door, light fixture, or ceiling conflict. Coordination is not about picking one sheet and ignoring the others. It is about making the plan set tell one buildable story.

A strong RFI is short, specific, and neutral. It does not accuse the architect. It does not hide the issue. It does not offer an illegal field redesign. It says something like this in plain language: the mechanical sheet shows the duct crossing below the beam at this gridline, the architectural sheet shows a finished ceiling that appears too high for the required clearance, please provide direction. That is enough to protect the project and move the decision to the right person.

Let me end by turning this into exam prep judgment. Based on the published CSLB study outline, this topic sits inside planning and estimating because it tests how you read plans before you build. The question behind the question is usually not, can you draft a new building? The question is, can you recognize when the drawings conflict, protect the job, protect the public, and stay inside the General B boundary?

If you remember nothing else, remember these anchors. Gridlines come first because they make every sheet talk about the same place. Wall types are containers, not just labels. Ducts and beams can steal ceiling height. Commercial occupiable spaces and corridors use 7 ft. 6 in. Commercial bathrooms, toilet rooms, kitchens, storage rooms, and laundry rooms use 7 ft. Residential habitable spaces and hallways use 7 ft. Residential bathrooms, toilet rooms, and laundry rooms use 6 ft. 8 in. Fireblocking caps the ends and breaks the run every 10 ft. Shaft enclosures use the 4 floors, 2 hours memory rule. Shop drawings detail the work, but they do not redesign the building. And the RFI is your liability shield when the plan set asks you to build the impossible.
