Decoding the Document Hierarchy: Specifications, Plans, Addenda, RFIs, and Shop Drawings

This content is produced by Pass The CSLB, an independent audio-first study companion for busy California B General candidates. I build these lessons from official CSLB study-guide topics and reputable source-backed California materials so you can study on the go. This is exam-prep reinforcement, not legal, professional, engineering, or job-specific advice. Exam content is set by PSI and the CSLB and may change, so always verify current requirements against official CSLB materials. No exam outcome is guaranteed. Now let's get into it.

This episode covers specifications, plans, details, schedules, addenda, RFIs, shop drawings, California Building Code Section 107.3.1, Cal/OSHA excavation document requirements under Title 8 Section 1541.1, and falsework document requirements under Title 8 Section 1717. This matters because document control affects estimating, coordination, inspection readiness, field supervision, safety, and liability under the CSLB Planning and Estimating domain.

##CHAPTER_1## I want to start with the big idea. Construction documents are not separate islands. They are one coordinated package. Plans talk in pictures. Specifications talk in words. Schedules organize repeated items. Details zoom in on assemblies. Addenda modify the bid package before the contract is set. Change orders modify the work after the contract is underway. RFIs are the formal way to ask for direction when the documents do not line up.

That is the mindset I want you to carry. Not, which page helps my price? Not, which note can I ignore? The right question is, what does the whole package require, and where do I need written clarification before I install, order, or price the work?

A working contractor already knows drawings are imperfect. Notes get copied from old jobs. Details get revised. A schedule changes, and one sheet does not catch up. The exam-prep skill is knowing how a responsible General B contractor handles that imperfection. You read the whole package, use the contract tie-breaker if one exists, and ask in writing when the conflict is obvious.

Here is the memory phrase: whole package first, tie-breaker second, RFI before guessing. That phrase can carry you through most document-control questions.

##CHAPTER_2## Now I want to separate the main document types.

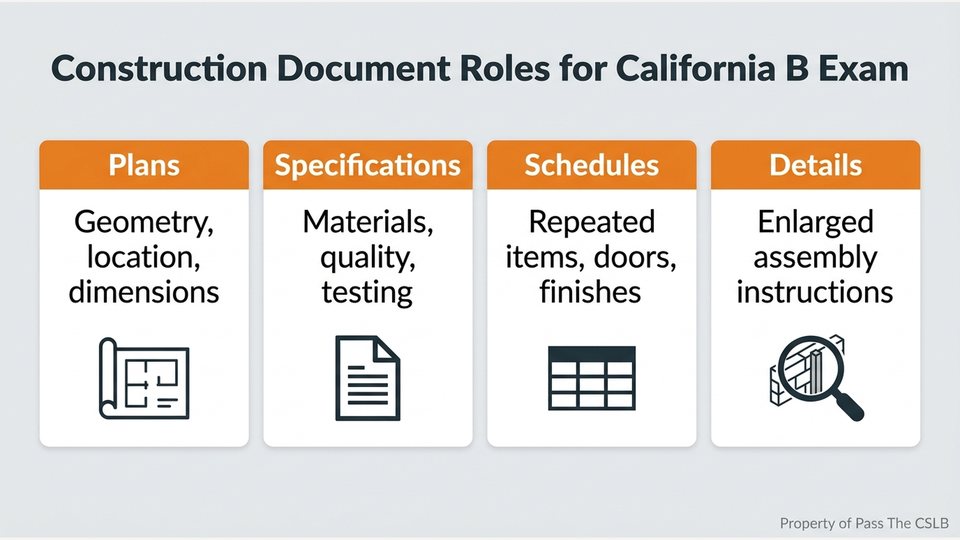

Looking at this chart, I want you to see the job each document performs. Plans are best for geometry, location, layout, dimensions, and relationships. A plan can show where a wall sits, where a door swings, and how a room connects to the rest of the building.

Specifications are better for text-heavy requirements. They can state material grade, product standard, finish quality, testing, warranty, manufacturer limits, and installation requirements. You would not want a 500-page project manual squeezed onto the edge of a floor plan. That is why specifications exist.

Schedules are organizers. A door schedule, window schedule, finish schedule, or hardware schedule takes repeated items and puts them in one structured place. If the plan shows a door tag, the schedule may tell you the size, rating, frame type, hardware group, and finish.

Details are the magnifying glass. They show what the broad plan cannot show clearly. A wall section, flashing detail, stair detail, or connection detail tells the field how the assembly is intended to go together.

The practical point is that plans and specifications often function as complementary documents. In standard private industry practice, what is required by one document can be binding as though required by all, unless the contract has a specific hierarchy saying otherwise. So if the floor plan shows a door, and the specification requires a particular lockset for that door type, you do not ignore the lockset just because it is not drawn as a little picture on the plan.

I like the restaurant analogy. The plan is the seating chart and plate presentation. The specification is the recipe. The schedule is the order list. The detail is the close-up of how the dish is assembled. The project needs the whole set.

This matters during estimating. If you price from drawings only and never read the specifications, you can miss testing, special finishes, hardware, mockups, warranties, submittals, and coordination obligations. A low bid created by ignoring the specifications is usually not clever. It is usually a future dispute.

So the first rule is simple. Do not treat drawings as the entire contract. Do not treat specifications as optional reading. Read plans and specs together unless the actual agreement gives a different rule.

##CHAPTER_3## Now let me move to order of precedence. This phrase just means the contract has a referee built into it.

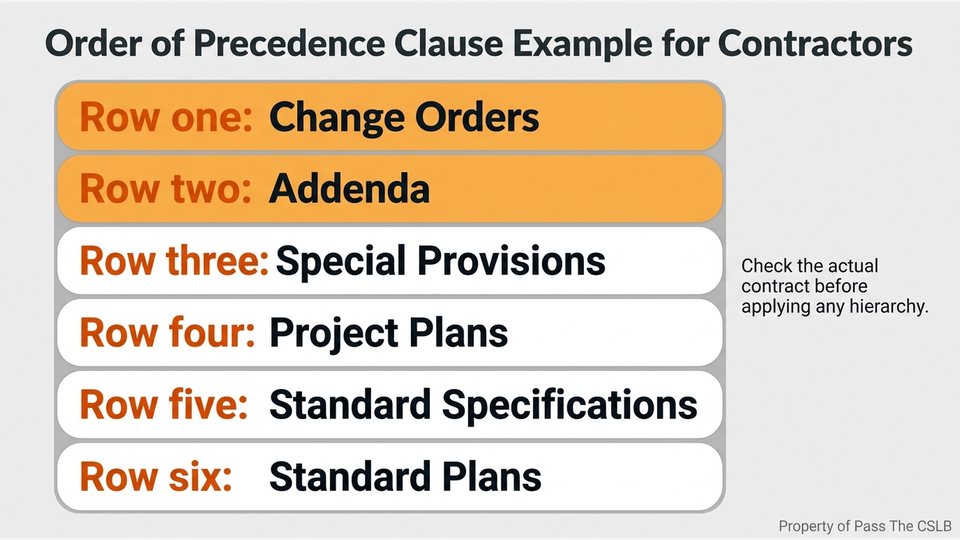

In some California public works and commercial contracts, there is an explicit order of precedence clause. A common public works style hierarchy may put change orders and addenda above special provisions, special provisions above project plans, and project plans above standard specifications or standard plans. The exact ranking depends on the contract, so I do not want you memorizing one hierarchy as if it controls every project in California.

The real lesson is this. When the contract includes an order of precedence clause, that clause is the tie-breaker. It tells you which document controls when 2 documents truly conflict.

Why does that clause exist? Large public work often uses standard specifications that apply to many projects, plus special provisions written for this specific job, plus project plans drawn for this site. Special provisions are usually more customized and more recent than the boilerplate language. An order of precedence says that the custom instruction wins over the general one when they conflict.

Think of clothing. Standard specifications are the off-the-rack jacket. Special provisions are the tailor's alterations. If the alteration says the sleeve is shorter for this job, you do not argue that the factory sleeve length was the original standard.

The trap is saying, specifications always beat plans. Do not say that. Some contracts rank documents. Some treat plans and specifications as complementary. Some public contracts have very specific hierarchy language. The contractor's job is to check the actual agreement.

For estimating, this is critical. If addendum number 2 changes a door hardware requirement, that addendum controls the bid package because it formally changed the documents. If the estimator prices the old requirement, the estimator missed a document revision.

Here is the memory aid. Addenda adjust before. Change orders change after. Addenda adjust before the contract is executed. Change orders change after the work is contracted. Both matter because both can modify the deal.

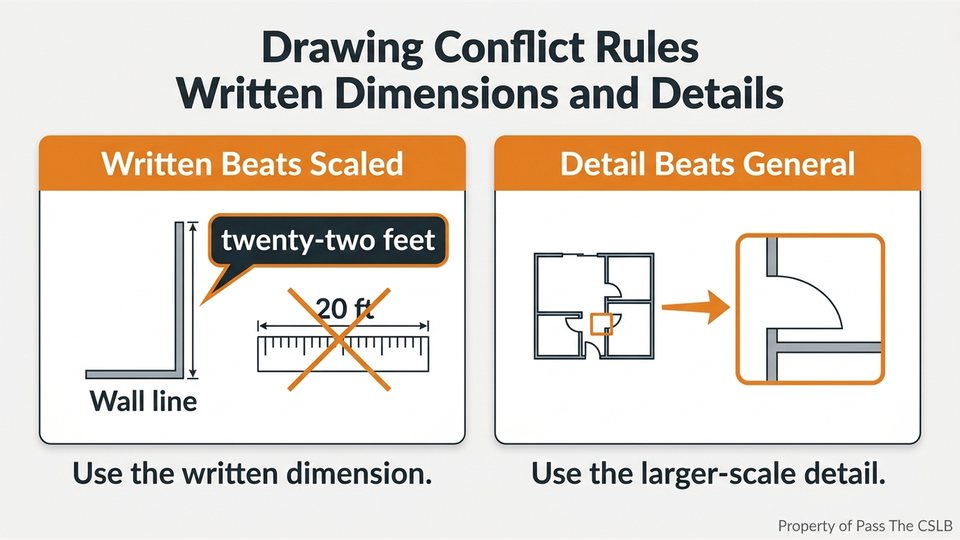

##CHAPTER_4## Now I want to get into 2 drawing rules that are easy to remember and useful in the field: written dimensions beat scaled measurements, and details beat general drawings.

First, written dimensions beat scaled measurements. If a wall looks like it scales at 20 feet, but the written dimension says 22 feet, you follow the written dimension. A printed drawing can shrink, stretch, distort, or be reproduced at the wrong size. A digital file can be printed with the wrong scale setting. A written dimension is the designer's direct instruction.

So remember this phrase: never let your ruler overrule the note. A scale ruler is useful only when scaling is appropriate and no controlling dimension is given. It is not more authoritative than a written dimension.

Second, detailed drawings generally govern over general drawings when they address the same condition. A floor plan may show the broad layout. A wall section may show the assembly. A large-scale detail may show flashing, fasteners, blocking, sealant, slope, or a connection more precisely. The detail exists because the general drawing is not enough.

Think of a map app. The statewide map gets you near the city. The close-up gets you to the driveway. If the close-up shows the entrance is from the alley, you do not ignore it because the big map used a thicker line. The detail is closer to the work.

This is why details matter for coordination. A detail may show backing that affects framing, waterproofing that affects sequencing, firestopping that affects inspection, or a structural connection that affects more than 1 trade. Details are where many expensive mistakes hide.

Good field judgment still matters. If the written dimension says 22 feet and the scale suggests 20 feet, the written dimension controls, but a 2-foot discrepancy may still deserve an RFI because it can affect layout, slab edge, finishes, roof framing, and equipment clearance. The rule tells you priority. The RFI protects the project when the conflict is big enough to need direction.

##CHAPTER_5## Now I want to talk about RFIs and the patent ambiguity trap.

An RFI is a Request for Information. It is the formal written way a contractor asks the architect, engineer, or appropriate design authority for clarification. It is not a casual text. It is not a hallway conversation that everyone forgets later. It is a project record.

The key legal idea is patent ambiguity. Patent means obvious. A patent ambiguity is a glaring conflict or error that a reasonable contractor should recognize. I am not talking about a hidden issue buried so deeply that no one could reasonably catch it. I am talking about a conflict that shouts from the page.

For example, imagine a structural note calls for a heavy connection, but the detail at the same location clearly shows a lighter one. Or imagine the specifications require a rated assembly, while the detail leaves out required rated components. If the conflict is obvious, the contractor should not quietly choose the cheaper interpretation and hope to profit from the confusion later.

The practical rule is simple. If the documents shout, do not whisper. Ask before you act. Submit the RFI. Identify the sheet, detail, specification section, note, schedule item, and location. Describe the conflict neutrally. Ask a clear question. If you propose a solution, label it as proposed, not as permission to proceed.

The danger zone is acting first and asking later. Once work is installed, the cost of correction rises fast. The problem becomes emotional because someone has to pay for demolition, reordering, delay, or failed inspection. An early RFI is boring paperwork. A late RFI can become expensive paperwork.

This connects directly to Planning and Estimating because planning is not only takeoff and pricing. Planning includes recognizing conflicts, coordinating trades, controlling documents, and protecting the project from preventable errors.

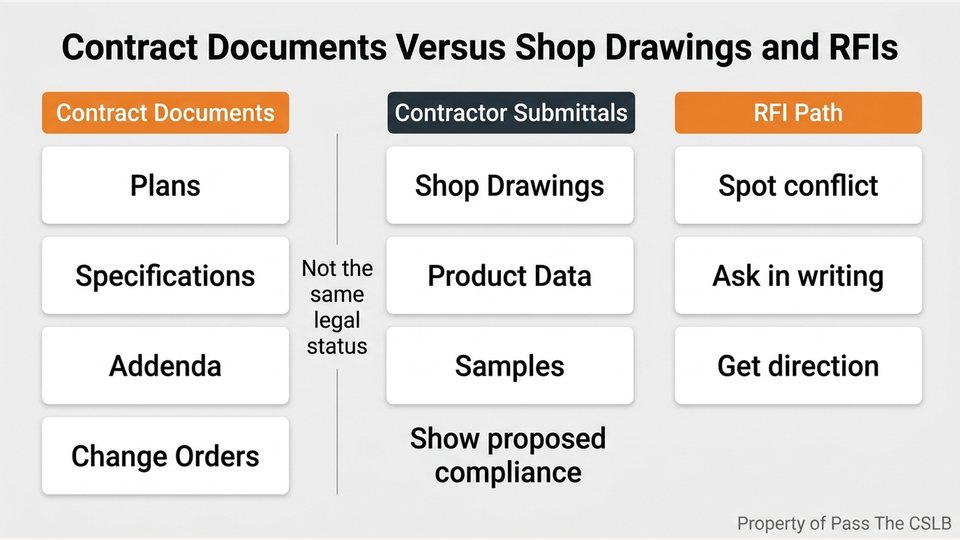

##CHAPTER_6## Now let me separate shop drawings from contract documents, because this is a classic trap.

Shop drawings, product data, and samples are submittals. They show how the contractor, subcontractor, supplier, or fabricator proposes to meet the contract requirements. A steel fabricator may submit shop drawings showing member sizes, hole locations, and connection information. A cabinet supplier may submit shop drawings showing dimensions, materials, and installation details. A window supplier may submit product data showing performance ratings and installation requirements.

But shop drawings are not contract documents. That sentence matters. They are not a back door for changing the plans and specifications. They are a way to demonstrate proposed compliance with the design concept and contract requirements.

The analogy I like is theater. The plans and specifications are the script. The shop drawing is the rehearsal. The contractor is saying, here is how I plan to perform the work. If the director watches the rehearsal and says it looks okay, that does not mean the actor can rewrite the script. To change the script, you need the proper written change process.

So if a shop drawing shows a cheaper product, different connection, or different configuration than the contract requires, an approval stamp by itself does not necessarily authorize that deviation. The contractor must not treat submittal approval as a free change order. A real change in scope, material, performance, or design intent needs the proper contract mechanism.

This rule protects the design. Design teams review many submittals, and their review generally checks apparent conformance with the design concept. It does not transfer every dimension, coordination issue, means and methods choice, or hidden deviation to the architect. If every shop drawing approval automatically rewrote the contract, the submittal process would become a dangerous game.

For field supervision, compare submittals against the drawings and specs before work is ordered or installed. Make sure substitutions are handled as substitutions. Make sure deviations are called out. Make sure approved submittals reach the crew, but do not let the crew believe the submittal replaced the contract documents unless there is a formal change.

The memory phrase is this: submittals show the method, not a contract rewrite.

##CHAPTER_7## Now I want to bring this down to the jobsite, because California document control is also about inspection readiness and safety.

California Building Code Section 107.3.1 requires 1 set of approved construction documents to be kept at the site of work and open to inspection by the building official. That means the approved plans should not be locked away at the main office when the inspector arrives. The field needs access.

The word approved matters. A marked-up bid set, a superseded permit set, or an old file on someone's tablet can create problems if the inspector needs the approved construction documents. Crews may work from copies, enlarged details, layout sheets, or digital files, but inspection readiness depends on having the approved set available.

Now add Cal/OSHA. For excavation protective systems, Title 8 Section 1541.1 requires tabulated data or a registered engineer's design to be maintained at the jobsite during construction of the protective system. For falsework, Title 8 Section 1717 requires the falsework plan or shoring layout to be available on the job site at all times.

The reason is life safety. A trench wall does not wait while someone drives to the office to find shoring data. Falsework does not care that the engineered layout is buried in an email inbox. If an inspector, superintendent, foreman, or competent person needs to verify the system, the document has to be where the hazard is.

Picture a 12-foot deep trench with aluminum hydraulic shores. The crew may have installed the system correctly, but if the tabulated data is at headquarters, the site cannot immediately prove that the system matches the soil conditions, depth, spacing, and manufacturer limits. That is not a paperwork technicality. That document is part of the protective system.

The same logic applies to falsework. Temporary support can carry serious loads before the permanent structure is ready. If the shoring layout is not on site, the people responsible for checking the work cannot quickly confirm that field installation matches the plan.

The memory phrase is: dangerous temporary work needs documents within reach. Excavations and falsework are temporary, but the risk is immediate.

##CHAPTER_8## Now I want to tie everything together with a simple decision path.

First, identify the document type. Is it a plan, specification, schedule, detail, addendum, change order, shop drawing, RFI response, approved permit document, or safety document?

Second, ask whether the documents are complementary or ranked by a contract clause. Do not assume specifications always control. Do not assume plans always control. Look for the actual order of precedence if one exists.

Third, apply the drawing rules. Written dimensions beat scaled measurements. Specific notes beat vague graphics. Detailed drawings beat general drawings when they address the same condition.

Fourth, ask whether the conflict is obvious enough to require an RFI. If it is a patent ambiguity, do not guess. Ask in writing and preserve the record.

Fifth, remember that shop drawings are not contract documents. They show proposed compliance, but they do not rewrite the deal unless the proper change process approves the change.

Sixth, keep required documents on site. Approved construction documents must be available for inspection. Excavation shoring tabulated data or engineer designs must be maintained at the jobsite during construction of the protective system. Falsework plans or shoring layouts must be available on the job site at all times.

Here is the full memory chain: Whole package. Contract hierarchy. Written beats scaled. Detail beats general. RFI before guessing. Submittals do not rewrite. Safety documents stay on site.

Say it shorter: package, hierarchy, notes, details, RFI, submittals, site documents.

A contractor who controls documents controls risk. The drawings do not have to be perfect for the contractor to act professionally. The contract gives you tools. The code gives you requirements. The RFI process gives you a record. Use them before the work is buried, covered, poured, framed over, or inspected.

##CHAPTER_9## Let me finish with the core takeaways. Plans show where and how things relate in space. Specifications state quality, materials, testing, and performance requirements. Schedules organize repeated items. Details zoom in. Addenda and change orders modify the package. RFIs clarify conflicts. Shop drawings show proposed compliance but do not become contract documents by themselves.

Do not scale a drawing when a written dimension is provided. Do not assume a shop drawing approval changes the contract. Do not guess at a glaring conflict. Do not leave required approved plans, shoring data, or falsework layouts somewhere other than the jobsite when the rules require them in the field.

And keep the main phrase in your head: whole package first, tie-breaker second, RFI before guessing.

There is an audio practice quiz for this specific episode, and I built it to match the way busy contractors actually study. It is audio-based, so the questions are read aloud, and you answer by tapping. It is made for people studying on the go, whether you are driving, walking a project, waiting on an inspection, or squeezing in a few more minutes before the day gets away from you. Go to the description below this video. You will see a link that says PassTheCSLB. Tap it. It will take you straight there. And if anything in this episode brought up a question from your own field experience, comment below and ask me. I read those because they help me make this study companion more useful. Subscribe so I can help you stay on track through every episode until you get your license.
