Headers, Jack Studs, and the Continuous Gravity Path

This content is produced by Pass The CSLB, an independent audio-first study companion for busy California B General candidates. I build these lessons from official CSLB study-guide topics and reputable source-backed California materials so you can study on the go. This is exam-prep reinforcement, not legal, professional, engineering, or job-specific advice. Exam content is set by PSI and the CSLB and may change, so always verify current requirements against official CSLB materials. No exam outcome is guaranteed. Now let's get into it.

This episode covers headers, king studs, jack studs, cripple studs, direct bearing, and the continuous gravity path; the 25%, 40%, and 60% limits for notching and boring; the 5/8 in. boring edge clearance; the 24-in. double top plate splice offset; the 6-ft. fall protection trigger; and the 15-ft. wall-raising restraint rule. I will connect those numbers to California Residential Code Sections R602.3, R602.7.5, R602.6, R602.3.2, R602.6.1, and R403.1.6, along with California Title 8, Section 1716.2. This matters because the published CSLB study outline identifies subfloor and wall framing as testable material, and a General B contractor must coordinate the work, recognize defects, and keep the load path intact without sizing structural members by guesswork.

The central idea is simple enough to say in one breath: weight needs an unbroken route to the ground. Roof loads, ceiling loads, and floor loads do not disappear when a wall opening appears. They must travel through connected framing members, through the floor or foundation system, and into the concrete and soil below.

I picture that movement as a river of weight. In an uninterrupted wall, the river runs mostly straight down through full-height studs. A door or window cuts a dry gap into that river. The header catches the load above the gap and carries it sideways. At each end, a jack stud turns that redirected load downward again. The supporting construction below must then continue the route. That is the continuous gravity path.

The most important distinction in this episode is direct bearing versus hanging from fasteners. A header is a small beam. If its ends are merely nailed into the sides of full-height studs, the load depends heavily on fasteners working in shear and on the surrounding connection staying tight. The approved prescriptive assembly instead places 1 or more jack studs under each end of the header, or uses an approved framing anchor where the code and design allow it. The jack stud gives the header a wood-to-wood bearing surface. Compression passes from header to jack, from jack to the sole plate and supporting system below, and onward toward the foundation. If that bearing is missing, the header reaction is forced into an unintended connection. Movement can show up as sagging, sticking openings, or cracked finishes, and a serious mismatch can compromise structural performance.

That sequence is the heart of the lesson. The header crosses. The jack carries. The king continues. The cripple completes. I use that sentence as a memory line because each member has a different job, and confusing those jobs is how a clean-looking opening can still hide a broken load path.

A full-height king stud stands beside the jack stud and runs from the sole plate to the top plate. California prescriptive framing provisions require that king stud next to the header to be end-nailed to the header according to the fastening schedule. The king stud helps complete and stabilize the opening assembly, but it is not the direct bearing column under the header. The jack stud, also called a trimmer stud, is the shortened member that stops at the underside of the header. Cripple studs are the short vertical pieces above a header or below a window sill that continue the regular framing pattern where a full-height stud cannot pass through.

An opening should be read as an assembly, not as a collection of lumber. I start at the top and trace every force transfer downward. I identify what the header supports. I verify that the header matches the approved plan, prescriptive table, or engineered detail. I confirm the required support at both ends. I look for the full-height king studs, the jack studs, the cripple layout, and the specified fastening. Then I keep tracing below the opening to make sure the concentrated reactions at the jack studs land on supporting construction rather than on an accidental weak point.

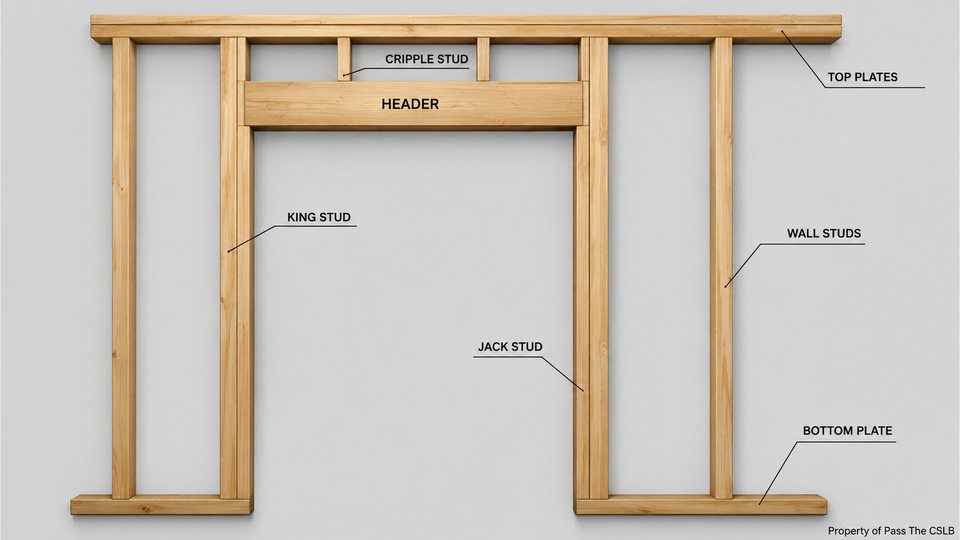

Looking at the opening anatomy chart, follow the downward arrows. The top plate distributes load into the header zone. The header carries across the opening. The reactions collect at the 2 header ends. The jack studs carry those reactions down. The king studs remain full height beside the opening. The cripple studs maintain framing above the header or below a window sill.

Header size and jack stud quantity are not field rules of thumb. California prescriptive tables account for conditions such as the clear span of the opening, the width of building supported, roof or floor loading, ground snow load where applicable, and wind category. The exact combination determines the permitted header and the number of supporting jack studs. An engineered detail can control instead. My job as the General B supervisor is not to invent a beam from memory. My job is to locate the controlling detail, build it, coordinate it, and keep substitutions from quietly changing the structural assumptions.

Suppose a crew has always used a double 2x12 over a certain patio door. That history does not establish compliance on the next project. The next opening may carry a floor instead of only a roof, may sit in a wider building, may have different species or grade requirements, or may be governed by an engineered shear-wall detail. The tempting shortcut is to call the familiar assembly good. The disciplined decision is to check the approved information before material is cut.

I also distinguish rough-opening convenience from structural bearing. A carpenter may adjust nonstructural blocking or layout to make an opening work, but the required jack stud bearing cannot be traded away for a few extra inches of clear width. If the opening dimension conflicts with the structural detail, the conflict belongs in a request for clarification or redesign. It does not belong behind drywall.

Now I want to turn to the cuts made after framing, because plumbing, electrical, and mechanical routing can interrupt a sound wall in a matter of minutes. California Residential Code Section R602.6 separates notching from boring and separates bearing conditions from nonbearing conditions.

In an exterior wall or a load-bearing partition, a stud may be notched no deeper than 25% of its width. In a nonbearing partition, the notch may reach 40% of the stud width. A bored hole may reach 60% of the stud width, provided the edge of the hole remains at least 5/8 in. from the edge of the stud. When a bearing stud is bored more than 40% and up to 60%, the stud must be doubled, and no more than 2 successive doubled studs may be bored that way.

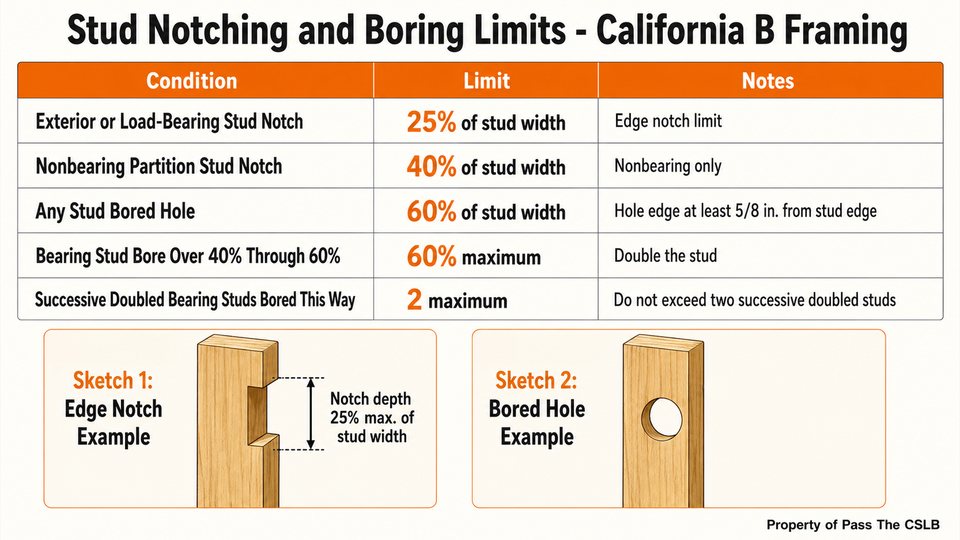

The comparison chart puts the limits side by side: 25% for a notch in an exterior or bearing wall, 40% for a notch in a nonbearing partition, and 60% for a bore with the required 5/8 in. edge margin. It also flags the special bearing-stud condition above 40%, where doubling is required and the successive-stud limit applies.

The physical distinction helps the numbers stick. A stud under vertical load is carrying compression, and a wall stud can also bend under lateral demand. The outer fibers contribute strongly to bending resistance. A notch cuts into those edge fibers at the place where bending stress is high. A centered bore removes material closer to the middle while preserving the outside edges, which is why the permitted percentages are different. I do not use that explanation to invent a repair. I use it to remember why an edge notch and a centered hole are not interchangeable.

Consider a hypothetical bathroom wall framed with a 2x4 stud whose actual width is 3.5 in. A plumber drills a 3-in. hole through an exterior bearing stud for a drain, waste, and vent line. That opening removes about 86% of the stud width, far beyond the 60% maximum, and the remaining edge material is inadequate. The correct supervisory response is to stop concealment and obtain an approved repair or replace the damaged member as directed. A stud shoe may be part of an engineered or listed repair, but I do not assume that a proprietary product automatically cures every violation.

The sequence matters. I want framing reviewed after the trades rough in and before insulation and drywall hide the cuts. That inspection point is not bureaucracy for its own sake. It is the last practical moment to see whether the load path was weakened, whether protective plates are needed for utilities, and whether a repair can be completed without demolition of finished work.

A useful field question is, what kind of removal occurred? If material was cut from the edge, I apply the notch limit. If a hole was drilled through the member, I apply the bore limit and edge clearance. Then I ask whether the wall is exterior, load bearing, or nonbearing. That 2-step classification prevents the common mistake of applying the more generous 40% nonbearing notch allowance to a bearing wall.

The continuous path also runs horizontally through wall plates. California Residential Code Section R602.3.2 requires end joints in double top plates to be offset by at least 24 in. The prescribed fastening at the splice uses 8 16d nails on each side of the joint. The stagger keeps both plate layers from ending at the same weak line.

When piping or ductwork requires a top plate to be cut or notched by more than 50% of its width, Section R602.6.1 requires a galvanized metal tie across the opening. The tie must be 16-gauge, which the source gives as 0.054 in. thick, and at least 1.5 in. wide. It must be fastened as required by the governing detail. The tie is not decorative hardware. It restores continuity across a plate that can no longer carry tension through uninterrupted wood.

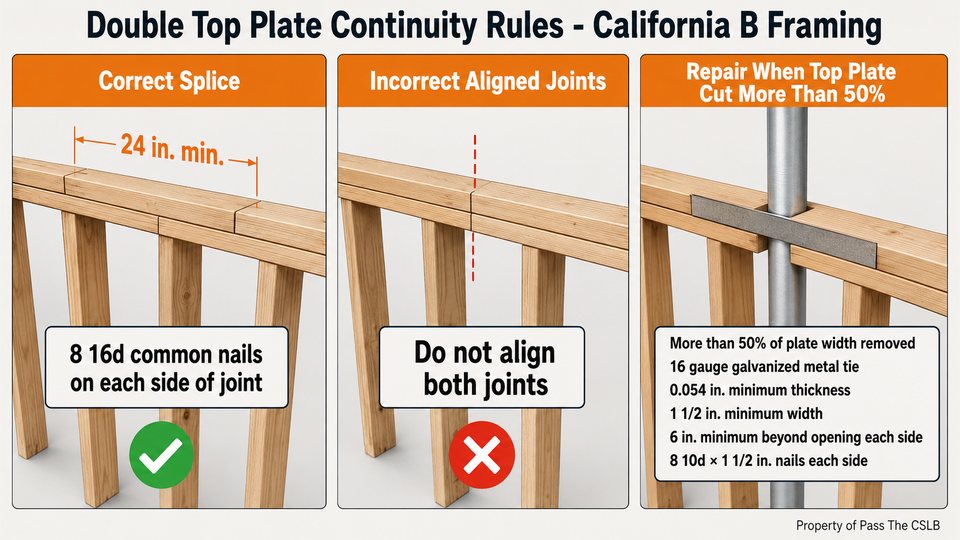

The plate continuity chart shows 3 conditions. The first is a correct double top plate with joints staggered at least 24 in. The second is the prohibited weak line created when both joints align. The third is a plate cut by more than half its width with the required galvanized tie bridging the cut. I want you to see the shared principle: a splice or utility cut must not leave the wall with a broken horizontal connection.

At the bottom of the wall, sole plates and sill plates connect the framing to the foundation. The California prescriptive rule in Section R403.1.6 calls for anchor bolts at least 1/2 in. in diameter, spaced no more than 6 ft. on center, and embedded at least 7 in. into concrete, subject to the full code conditions and approved plans. Those bolts are part of the route into the foundation. They are not, however, a substitute for temporary wall-raising restraints.

The connected idea here is sequencing. Plate splices, utility penetrations, hardware, and anchors may be installed by different crews at different times, but the building experiences them as one structural chain. A framing supervisor who checks only the original frame and never rechecks after rough plumbing or ductwork can miss the moment that chain is cut.

Safety during wall erection has its own numbers, and outdated field memory is especially risky here. Effective July 1, 2025, California residential framing fall protection generally begins when employees are working 6 ft. or more above the surrounding grade or floor level. Conventional protection can include guardrails, scaffolding, safety nets, or personal fall arrest systems, depending on the operation and compliant setup.

A written fall protection plan or a safety monitor is not a convenience substitute for ordinary protection. The employer must meet the regulatory conditions for showing that conventional protection is infeasible or creates a greater hazard. Inconvenient is not the same as infeasible. That distinction affects planning before workers climb onto top plates, joists, or trusses.

Manual wall raising has a separate threshold. Before a framed wall 15 ft. or more in height is raised manually, temporary restraints such as floor cleats or straps at the bottom plate must be installed to prevent horizontal sliding. Anchor bolts alone may not be used as the blocking or bracing method for that lift.

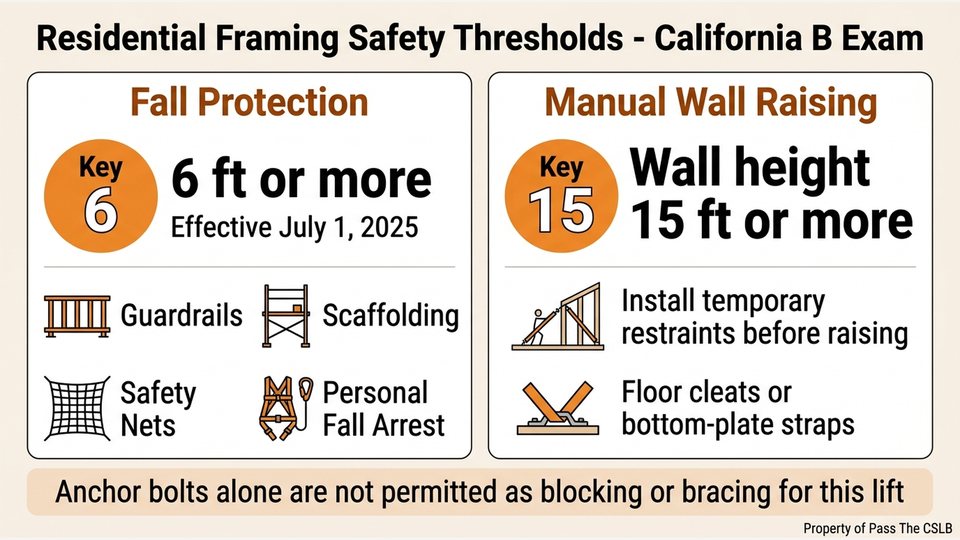

The safety chart separates the 2 thresholds so they do not blur together. 6 ft. is the fall protection trigger for residential framing work under the updated rule. 15 ft. is the wall-height threshold for temporary restraints before manual raising. The chart also shows the prohibited shortcut: relying only on foundation anchor bolts to stop the bottom plate from sliding.

Imagine a crew preparing to raise a 16-ft. gable wall. The bottom plate is placed against projecting anchor bolts, and no cleats or straps are installed. As the wall rotates upward, the base can slide or kick because the wall creates substantial leverage. The required restraint addresses that immediate movement. The supervisor should stop the lift, install compliant temporary restraints, confirm the raising plan, and separately provide fall protection for any employee exposed at 6 ft. or more.

This is where 2 systems meet. Structural anchors are designed as part of the completed building connection. Temporary erection restraints control the assembly during a changing, unstable phase. One piece of hardware should not be assigned a job it was not approved to perform merely because it is already nearby.

I use a consistent inspection routine for openings and load paths. First, I verify the governing documents: approved plans, structural details, schedules, and applicable prescriptive provisions. Second, I trace the load from above the opening through the header, into the required jack studs, and into supporting construction below. Third, I verify member identity and continuity: king studs full height, jack studs under the header, and cripples in the intended locations. Fourth, I inspect later trade cuts, plate penetrations, and repairs before concealment. Fifth, I confirm fastening, anchors, connectors, and safety controls match the approved requirement rather than a remembered habit.

Consider a hypothetical sliding-door opening under a 2nd-story floor. The header appears substantial, but 1 end has no jack stud because the rough opening was widened in the field. The header is side-nailed to a king stud, and the finish crew is ready to cover it. The problem is not cosmetic. The direct bearing path shown by the approved design has been removed. The correct response is to stop, compare the assembly with the controlling detail, and obtain an approved correction. Adding more nails without authorization does not recreate a missing bearing column.

Now consider a top plate cut for a duct. If the cut removes more than half the plate width, I look for the prescribed 16-gauge galvanized tie, at least 1.5 in. wide, installed across the opening with the required fastening. I also look beyond that single repair. I ask whether the cut intersects a braced wall detail, whether connectors or straps were displaced, and whether the approved plans impose additional requirements. The code minimum and the project-specific design must be read together.

A third scenario combines framing and safety. A crew is setting trusses on a single-story wall roughly 9 ft. above the floor and relies only on a person watching from below. Under the rule effective July 1, 2025, the 6-ft. trigger has already been crossed. The contractor must use compliant fall protection unless the strict conditions for an alternative are actually met. A familiar old practice does not override the current order.

These examples point to the General B boundary. I am not asking you to calculate beam stresses or design a custom repair from first principles. I am asking you to recognize when the prescriptive path applies, when an engineered detail controls, when the work no longer matches either one, and when concealment must stop until the conflict is resolved.

Here is the compact memory map I want you to carry away. The header crosses the opening. The jack stud carries the header reaction downward. The king stud continues full height beside the opening and connects to the header. The cripple stud completes regular framing above or below the opening. A bearing or exterior stud gets no more than a 25% notch. A nonbearing partition gets no more than a 40% notch. A bore can reach 60% only with the 5/8 in. edge clearance, and a bearing stud bored beyond 40% needs the prescribed doubling, with no more than 2 successive doubled studs treated that way.

Keep the horizontal links in the same picture. Double top plate joints stay at least 24 in. apart and receive the prescribed 8 16d nails on each side of the splice. A plate cut by more than 50% needs the specified 16-gauge galvanized tie at least 1.5 in. wide. Foundation anchorage uses at least 1/2 in. bolts, no more than 6 ft. on center, embedded at least 7 in., subject to the complete code and plans.

Then separate the safety thresholds. 6 ft. concerns fall protection. 15 ft. concerns temporary restraints before manually raising a tall framed wall. Anchor bolts alone do not satisfy the wall-raising restraint rule. That clean separation is more reliable than trying to remember a pile of unrelated numbers.

The central lesson is still direct bearing inside a continuous chain. An opening does not eliminate load; it redirects load. A trade penetration does not eliminate force; it changes the member that must resist it. A temporary erection phase does not eliminate risk; it changes the controls that must be in place. I want you to trace the path, identify the interruption, and verify the approved method that restores continuity.
