This episode covers everything you need to know about cutting, notching, and boring structural wood framing members — floor joists, wall studs, top plates, and roof rafters. The governing code sections are CRC R502.8 and R502.8.1 for floor joists, R602.6 and R602.6.1 for wall studs and top plates, and R802.7 and R802.7.1 for roof rafters. Official preparation resources consistently identify this as a priority area for the General B trade examination — and once you understand why these numbers exist, you will own them permanently.

WHY THESE RULES EXIST — THE PHYSICS OF STRUCTURAL LOAD

Before I give you a single number, I want to give you the physics behind every number in this topic. Because if you understand why each rule exists, the numbers stop feeling like something you have to memorize and start feeling like the only answer that makes sense. That is a completely different relationship with material under pressure, and it is what separates people who pass on the first attempt from people who blank out with 40 questions left on the clock.

When a floor joist spans between two supports and carries a load from above, it behaves as a simple beam in bending. Picture this clearly: take a wooden ruler and hold it flat between two stacks of books. Press down in the middle. The top surface bows inward — compressed, fibers crushed together. The bottom surface bows outward — stretched, fibers pulled apart. In a beam carrying a uniform load, the bending moment builds from zero at each end and reaches its absolute maximum at the center of the span.

This is the most important structural fact in this entire episode: the wood at the center of the span is working harder than anywhere else. That is where the joist will fail first if you weaken it. This is why the code draws a hard boundary around the middle 1/3 of every floor joist span: no notches — zero, with no exceptions, no conditions, and no partial allowances.

Before standardized framing codes were widespread, tradespeople would route pipes and wires through floor joists however they found convenient. Plumbers notched wherever the pipe needed to go. Electricians bored through whatever was in the way. Years later — sometimes decades later — floors showed excessive deflection under normal loading. Structural investigators repeatedly identified unauthorized framing modifications as contributing factors. The specific fractions used today represent the empirically derived threshold below which a modified solid sawn member still performs within its design intent.

Shear stress — the force trying to vertically slide one cross-section of the joist past the adjacent one — is maximum at the ends of the member at the bearing points, and drops to zero at midspan. Because bending is near zero at the ends, the code tolerates a deeper cut there — the end notch. Bored holes near the neutral axis remove low-stress material, which is why holes can be proportionally larger than notches. But drill close to the top or bottom edge and you remove the highest-stress fibers — hence the mandatory 2 in. clearance.

Vertical wall studs are columns in compression. Columns fail by buckling, which is not gradual — a column holds its full load until the instant it does not. The bearing wall stud rules are tight because the consequences of getting them wrong are sudden.

FLOOR JOISTS — THE THREE GOVERNING FRACTIONS

For solid sawn lumber floor joists, CRC R502.8.1 establishes 3 governing fractions. I teach them as a set: Holes, Notches, Ends.

Holes: maximum diameter = D/3 (one-third of actual depth). Notches: maximum depth along span = D/6 (one-sixth of actual depth). Ends: maximum end notch depth = D/4 (one-quarter of actual depth).

The sequence is 1/3, 1/6, 1/4. Holes get the most room because material remains on all 4 sides of the penetration. Span notches get the least room because they exist in zones with real bending stress. End notches fall in the middle because the ends carry low bending stress.

Complete rules for bored holes: maximum diameter D/3. No hole within 2 in. of the top or bottom face. No hole within 2 in. of any other hole or notch. Critical distinction: holes are permitted in the middle 1/3 of the span — the middle-third prohibition applies to notches only. A bored hole within size and clearance limits can be placed anywhere along the span.

Complete rules for span notches: maximum depth D/6, outer thirds of span only — never the middle third. Notch length must not exceed 1/3 of actual depth. Square cutouts not recommended — angled cuts distribute stress more gradually.

Complete rules for end notches: maximum depth D/4 at the bearing point only. No holes and notches at the same cross-section — minimum 2 in. separation along the span.

Every floor joist and rafter rule is in this chart — rule type, maximum limit, and location rule. Look at the middle-third row. Zero. Not a reduced fraction — zero. That is what makes it the most testable concept in this section.

NOMINAL VERSUS ACTUAL DIMENSIONS — THE MATH TRAP

The fractions apply to the actual depth of the lumber, not the nominal size on the material tag.

A 2x10 joist is not 10 in. deep. Actual surfaced dimensions: 2x4 = 3-1/2 in. actual width 2x6 = 5-1/2 in. actual depth 2x8 = 7-1/4 in. actual depth 2x10 = 9-1/4 in. actual depth 2x12 = 11-1/4 in. actual depth

Always two steps: identify actual dimension, then apply the fraction.

Max hole in a 2x10 joist: actual = 9-1/4 in. D/3: 9.25 ÷ 3 = approx. 3-1/16 in. Max span notch in a 2x8 joist: actual = 7-1/4 in. D/6: 7.25 ÷ 6 = approx. 1-3/16 in. Max end notch on a 2x12 rafter: actual = 11-1/4 in. D/4: 11.25 ÷ 4 = approx. 2-13/16 in.

Using the nominal number produces a result that does not match any correct answer choice. That failure is by design — the exam assumes you know actual dimensions.

ENGINEERED WOOD PRODUCTS — THE EXCEPTION THAT OVERRIDES EVERYTHING

Everything above applies to solid sawn lumber only. CRC R502.8.2 draws a hard boundary: the solid lumber rules do not apply to engineered wood products.

Engineered wood products: I-joists, LVL (laminated veneer lumber), structural composite lumber, glulam (glue-laminated beams), and prefabricated roof trusses. The code states: cuts, notches, and holes are prohibited except where permitted by the manufacturer's recommendations, or where the effects of those alterations have been specifically considered in the design by a registered design professional.

No D/3. No D/6. No percentage. No field judgment. Written documentation from the manufacturer or a licensed structural engineer is the only basis for any penetration.

Why? An I-joist has two horizontal flanges — one at top, one at bottom — connected by a thin vertical web. The flanges carry bending load, the web carries shear. Notch through a flange and you have destroyed the primary load-carrying element. No fraction derived from solid sawn mechanics applies here.

Memory anchor: manufactured members require manufacturer authorization. Factory-made member = field fractions suspended. No written permission, no penetration.

BEARING AND EXTERIOR WALL STUDS

CRC R602.6 divides walls into 2 categories.

For exterior walls and load-bearing partitions: maximum notch depth = 25% of stud width. For a 2x4 stud (actual width 3-1/2 in.): 25% × 3.5 = 7/8 in. maximum. Less than 1 in.

For bored holes: standard maximum = 40% of stud width. For a 2x4: approx. 1-3/8 in. Minimum edge clearance: 5/8 in. from edge of hole to edge of stud — prevents grain splitting.

Exception for larger holes: up to 60% of stud width permitted in bearing or exterior walls only if the stud is doubled. No more than 2 successive doubled studs may be bored this way.

Rule for all wall studs: a bored hole and a notch cannot be at the same cross-section.

Bearing wall rules on the left, non-bearing on the right. The percentages — 25%, 40%, 40%, 60% — are a direct focus area in official CSLB preparation materials. Those four numbers need to be automatic.

NON-BEARING PARTITION WALLS — THE RELAXED RULES

Interior non-bearing partitions carry no structural load from above.

Max notch depth: 40% of stud width. For a 2x4: approx. 1-2/5 in. — more than twice the bearing wall limit. Max hole diameter: 60% of stud width — no doubling required. For a 2x4: approx. 2-1/10 in.

The 5/8 in. edge clearance still applies. No holes and notches at the same cross-section still applies. Those two requirements do not relax for any wall type.

Your critical job as general contractor: recognize the instant a subcontractor crosses from a non-bearing partition into an exterior or bearing wall — because the rules change completely with that transition.

TOP PLATE CUTTING — THE METAL TIE RULE

The double top plate distributes loads from the diaphragm above into each individual stud below. Cut it and you break the load path. CRC R602.6.1 addresses this directly.

When cutting, drilling, or notching of the top plate exceeds 50% of its width, a galvanized metal tie must be installed across the cut. Specifications: Thickness: minimum 16-gauge (approx. 0.054 in.) Width: minimum 1-1/2 in. Nails: minimum 8 sixteen-penny nails per side Extension: minimum 6 in. past opening on each side

Exception: if the entire side of the wall with the cut is covered by wood structural panel sheathing, the tie is not required.

The trigger is exactly 50%. A cut at 49% requires nothing. A cut at 51% triggers the full specification. Memory anchor: 16 — 1-1/2 — 8. Gauge, width, nails per side. Triggered at 50%.

ROOF RAFTERS — SAME FRACTIONS, SAME LOGIC

Solid sawn rafters follow CRC R802.7 and R802.7.1 — rules identical to floor joists because the physics are identical.

D/3: maximum bored hole diameter. D/6: maximum span notch depth in outer thirds. D/4: maximum end notch at bearing point. No notches in middle 1/3 of span. 2 in. minimum clearance from hole to top or bottom edge. No holes and notches at same cross-section.

The bird's mouth — the seat and plumb cut where a rafter rests on the top plate — is an end notch. Maximum depth: D/4 of rafter's actual depth. Inspectors verify this on every framing inspection.

Engineered roof members — prefabricated trusses, I-rafters, glulam — follow R802.7.2: no cuts, notches, or holes without manufacturer or engineer authorization.

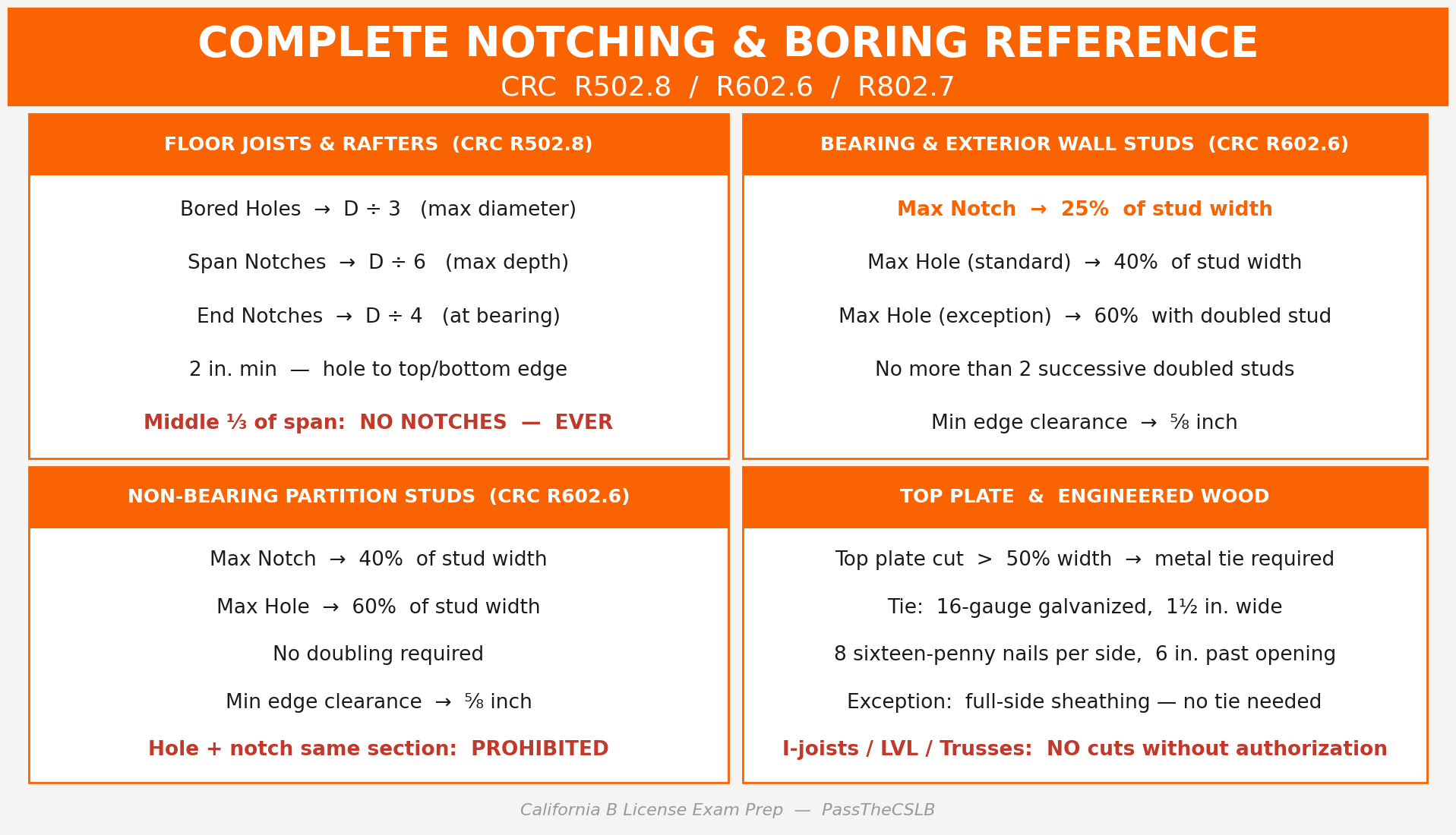

COMPLETE REFERENCE MATRIX

Floor joists and rafters: D/3 bored holes. D/6 span notches. D/4 end notches. 2 in. clearance from hole to edge. Zero notches in middle 1/3 — no exceptions.

Bearing and exterior wall studs: 25% max notch. 40% max hole standard. 60% max hole with doubled stud, no more than 2 successive. 5/8 in. edge clearance. No holes and notches at same section.

Non-bearing partition studs: 40% max notch. 60% max hole — no doubling. 5/8 in. clearance. No holes and notches at same section.

Top plate cut over 50%: 16-gauge galvanized tie, 1-1/2 in. wide minimum, 8 sixteen-penny nails per side, 6 in. past opening each side. Exception: full-side WSP sheathing.

Engineered wood: no cuts, notches, or holes without written manufacturer or engineer authorization. No exceptions.

COMMON EXAM TRAPS — WHERE CANDIDATES LOSE POINTS

Trap one: nominal versus actual dimensions. A 2x10 is 9-1/4 in. deep, not 10 in. Using the nominal number produces a result that does not appear in any answer choice. Always convert first.

Trap two: holes in the middle 1/3 are not prohibited — only notches are. Bored holes within D/3 and the 2 in. clearance rule are permitted anywhere along the span, including the middle third. The prohibition applies exclusively to notches.

Trap three: the 60% hole in a bearing wall requires a doubled stud. Any answer that approves the oversized hole without specifying doubling is wrong — the exception and the requirement are inseparable.

Trap four: engineered members are not governed by solid lumber fractions. I-joist, truss, glulam, LVL — the only answer for any penetration involves manufacturer or engineer authorization. Do not apply D/3 or D/6 to any manufactured member.

Trap five: the top plate metal tie trigger is exactly 50% — not 1/3, not 40%. Below 50%: no action. Above 50%: full tie specification. Read the percentage in the scenario precisely.

MEMORY ANCHORS — LOCK EVERY NUMBER IN

For the 3 joist fractions: three — six — four. Holes get 3: smallest denominator, most room. Span notches get 6: largest denominator, least room. End notches get 4: the middle value. Say it: three, six, four.

For wall stud rules: bearing gets the quarter (25%) because it carries the most load. Non-bearing notches relax to 40%. Holes in bearing start at 40% and reach 60% only with a doubled stud. Non-bearing goes straight to 60%.

For engineered wood: manufactured members require manufacturer authorization. No fractions apply.

For the top plate: 16 — 1-1/2 — 8. Gauge, width, nails per side. Triggered at 50%.

For the middle-third prohibition: picture the joist under full load, bowing at its center, working hardest at that exact point. That image is the rule. See it and the answer is always zero.
