Fireblocking Requirements in Concealed Spaces

This content is produced by Pass The CSLB, an independent audio-first study companion for busy California B General candidates. I build these lessons from official CSLB study-guide topics and reputable source-backed California materials so you can study on the go. This is exam-prep reinforcement, not legal, professional, engineering, or job-specific advice. Exam content is set by PSI and the CSLB and may change, so always verify current requirements against official CSLB materials. No exam outcome is guaranteed. Now let's get into it.

The central field decision is simple. I never want a concealed cavity to become an open highway from one part of a building to another. A stud bay, chase, soffit, or stair cavity can look harmless during rough framing, but once it connects vertical and horizontal voids, it can become a hidden route for flame and hot gases.

The physical behavior is straightforward. Hot gases rise because they are less dense than the cooler air around them. Inside a tall, narrow cavity, that upward movement can create a draft. The draft can pull more air from below and carry heat and smoke toward the next concealed space. I think of an open stud cavity as a hidden flue. Fireblocking interrupts that flue. It does not make the assembly fireproof, and it does not replace a rated wall or a listed penetration system. Its job is to cut off the concealed draft opening so fire and hot gases do not have a free path.

That distinction matters during supervision. A wall may look complete from the room side, yet a small opening behind the finish can connect a lower cavity to an attic, a soffit, or the space under a stair. The immediate defect is an unbroken concealed route. The possible consequence is that heat and smoke move beyond the room of origin before anyone can see the path. I want the rough-framing inspection to catch that route while the skeleton of the building is still visible.

I start with the locations that define the basic layout. In concealed spaces of stud walls and partitions, fireblocking is required at floor and ceiling levels. The requirement also applies to furred spaces and to walls built with parallel rows of studs or staggered studs. Those unusual stud layouts are easy to miss because the cavity does not read like a standard single row of bays, but the concealed path still has to be interrupted.

The code also requires fireblocking horizontally at intervals not exceeding 10 ft. I treat 10 ft. as the maximum horizontal interval for a connected concealed wall space, not as a casual target and not as a substitute for checking every floor and ceiling line. This detail matters in furred spaces and in parallel or staggered stud walls, where a concealed path can continue along the wall behind the framing instead of being divided into ordinary individual bays.

Platform framing often gives me solid top and bottom plates at floor lines. Those plates can act as natural interruptions when they are continuous and intact. The trouble starts when a chase, soffit, dropped ceiling, or trade penetration bypasses the plate. A natural block only works where the material still closes the concealed route.

I put a cutaway framing view on screen because the locations become easier to remember when I trace the path instead of memorizing a list. I begin at the floor line, follow the stud cavity upward, then trace any connected concealed path along the wall and into adjoining voids. The important locations are the floor line, the ceiling line, any point needed to keep a horizontally connected wall space within 10 ft., the wall-to-soffit connection, the top and bottom of a concealed stair-stringer space, and the openings around services that pass through a fireblock.

Here is the practical memory connection. I trace the hidden air path. If the air can travel freely through a concealed opening, I ask what approved fireblocking closes that route. That question is more reliable than looking only for a row of wood blocks, because fireblocking can be made from several approved materials and can appear in several different assemblies.

A common mistake is to see a solid top plate and stop looking. Imagine a wall with a double top plate, then suppose an open chase is framed beside it and continues into the ceiling space. The plate closes the ordinary stud bays, but the chase may still bypass the interruption. I do not give the wall credit for fireblocking until the entire concealed route is cut off.

Soffits and dropped ceilings deserve special attention because they join a vertical cavity to a horizontal one. Consider a hypothetical kitchen remodel where a crew frames a dropped soffit above the cabinets for ductwork. The wall studs terminate below the original ceiling, and the soffit creates a long horizontal void. If the wall cavity opens directly into that void, hot gases can rise in the wall and turn into the soffit. The field correction is to install approved fireblocking at the interconnection before the soffit is enclosed.

The same logic applies to coved ceilings and mechanical or plumbing chases. I am not looking for a decorative feature. I am looking for a concealed change in direction. The moment a vertical void meets a horizontal void, I check whether the connection has been isolated.

Stairs create a different geometry but the same problem. The concealed space between stair stringers can form a diagonal route. Fireblocking is required between the stringers at the top and at the bottom of the run. I pay attention to the words between the stringers. Blocking only the adjacent wall does not necessarily close the concealed stair cavity itself.

Now consider a pipe, duct, vent, or wire passing through a top plate or a floor line. The service may fill much of the opening, but the remaining ring-shaped gap is the annular space. If that gap stays open, the service penetration defeats the fireblock. The code requires the annular space at ceiling and floor levels to be filled with an approved material that resists the free passage of flame.

I want to be precise about the word approved. A convenient product is not automatically a compliant product. Where a sealant, foam, or manufactured system is proposed, I verify that it is tested or listed for the exact form and manner of use, and I follow the applicable instructions and project requirements. A label that sounds fire-related is not a substitute for checking the approved use.

Trade sequencing is where many defects appear. The framing crew may leave a continuous plate and a properly blocked chase. Then the plumbing, electrical, or heating and air-conditioning rough-in opens new holes. From a General B supervision standpoint, I inspect the fireblocking again after the rough trades have made their penetrations and before the work is concealed. I do not assume that a correct framing condition stayed correct after every trade passed through it.

Suppose a plumber drills through a top plate for a waste line, an electrician adds a group of cables beside it, and a duct installer enlarges an opening into a soffit. None of those actions automatically means the work is wrong. The supervision question is whether each altered fireblock is restored with an approved method before inspection and cover. That is the difference between coordinating the trades and merely checking that each trade finished its own run.

Approved fireblocking materials are specific enough that I memorize the main options and still verify the code that applies to the project. The familiar default is 2 in. nominal lumber. In ordinary wood framing, that often means a block cut from the same nominal thickness as the studs.

Another approved option is 2 thicknesses of 1 in. nominal lumber with broken lap joints. Broken lap joints means the seams are offset instead of lining up. The 2 layers work as a continuous barrier because a joint in 1 layer is covered by material in the other.

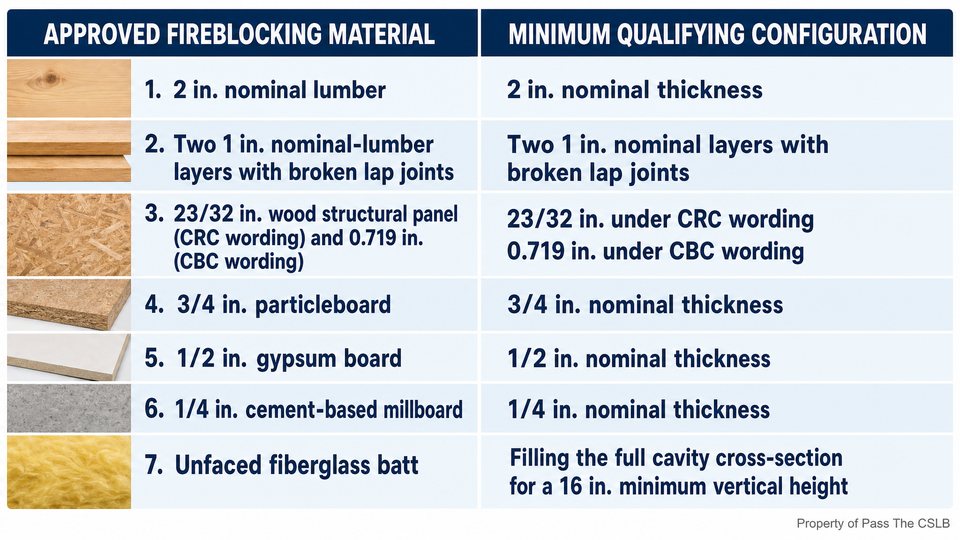

I put the approved-material comparison on screen because the thicknesses are easy to mix up. The core list includes 2 in. nominal lumber, 2 layers of 1 in. nominal lumber with broken lap joints, wood structural panels at the required thickness, 3/4 in. particleboard, 1/2 in. gypsum board, and 1/4 in. cement-based millboard.

For the wood structural panel, the residential code language uses 23/32 in. The building code counterpart expresses the thickness as 0.719 in. Those values describe essentially the same panel thickness, but I do not casually round a specified material down. I match the applicable code language and the approved assembly.

Notice what the list does not say. It does not say that any scrap sheet material is acceptable because it happens to fit the hole. Thickness, material type, fit, support, and continuity matter. An approved material with a large opening around it does not provide an effective barrier.

I also separate fireblocking material from finish material in my mind. 1/2 in. gypsum board can be an approved fireblocking material in the prescribed condition, but a smear of joint compound is not the same thing as a piece of gypsum board. 1/4 in. cement-based millboard is a listed material category, but a random thin cement product should not be assumed equivalent without verification.

The best field habit is to identify the material before installation, not after the inspector questions it. I check the plan details, the applicable code provision, and any product documentation while the cavity is open. That prevents the late-stage argument where a crew has already buried an unverified substitute behind ducts, pipes, or framing.

Unfaced fiberglass batt insulation has a special allowance that deserves its own memory rule. It may be used as fireblocking only when it fills the entire cross-section of the wall cavity to a minimum vertical height of 16 in. I remember it as unfaced, full, and 16.

Unfaced means I am not relying on a facing that can create a different condition. Full means the batt fills the complete cavity cross-section, not just the center. 16 means the packed section extends at least 16 in. vertically. If piping, conduit, or another obstruction passes through the cavity, the material has to be packed around it so an open bypass is not left beside the obstruction.

The practical failure is usually not dramatic. It is a short wad pushed into the bay, a loose edge behind a pipe, or a batt that can fall out before cover. Any of those conditions can leave a path around the material. The code allowance depends on the installed configuration, not merely on the fact that fiberglass is present.

Loose-fill insulation is different. It cannot be used as fireblocking unless it has been specifically tested in the form and manner intended for use. The same caution applies to insulating foam sealants and caulk materials. I do not treat a standard expanding foam as approved fireblocking merely because it fills space. I verify the tested or listed use for the exact opening, material, and orientation.

This is a useful place to resist a common shortcut. A crew may say that foam closes every crack more neatly than cut lumber. Neatness is not the acceptance standard. The question is whether the product and installation are approved for that fireblocking application. A clean-looking unlisted fill can still be the wrong method.

Fireblocking and draftstopping are related, but I keep them separate. Fireblocking is local. It closes the small concealed paths within the framing skeleton, including stud spaces, soffit connections, stair cavities, and penetrations at floor and ceiling lines.

Draftstopping works at a larger scale. It subdivides broad concealed spaces in floor and ceiling assemblies or attics under its own location and material rules. A material that is permitted for draftstopping is not automatically approved for fireblocking, and a fireblocking detail does not automatically satisfy a draftstopping requirement.

Firestopping is another separate term. It commonly refers to a tested system used where a penetration passes through a fire-resistance-rated assembly. I do not substitute the prescriptive fireblocking list for a required listed firestop system. When a rated assembly is involved, I follow the approved design, listing, plans, and project-specific requirements.

The memory connection is scale and assembly. Fireblocking closes local concealed framing paths. Draftstopping divides large concealed areas. A listed firestop system protects a penetration in a rated assembly. The words sound similar, but the inspection question, accepted material, and installation method can be different.

I use an x-ray job walk before concealment. I start at the lowest visible floor line and look for continuous plates or approved blocking. I follow each unusual wall along its concealed path and confirm that any horizontally connected space is divided at intervals not exceeding 10 ft. I pay extra attention to furred walls, parallel-stud walls, staggered-stud walls, and any chase that does not behave like ordinary platform framing.

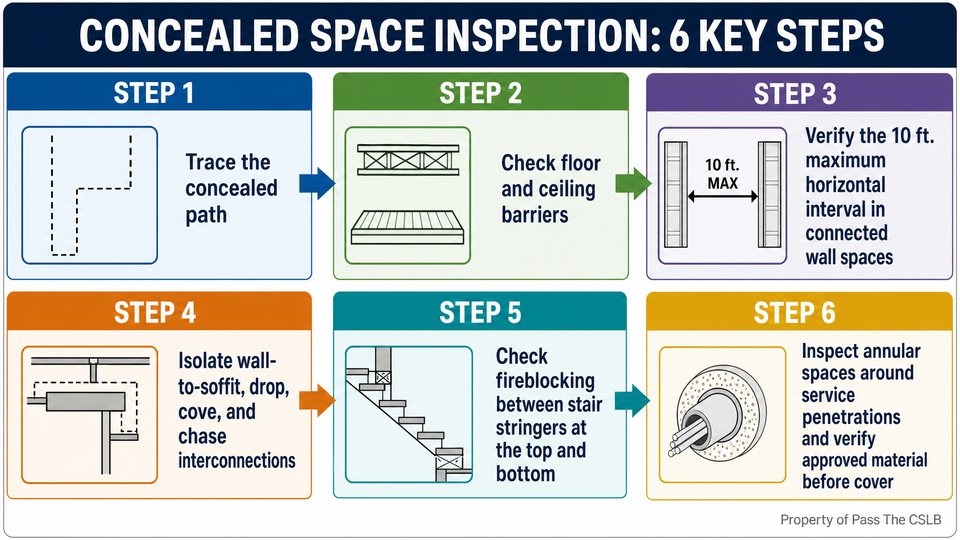

I put the inspection sequence on screen as a simple flow. First, trace the concealed path. Second, confirm the floor and ceiling interruptions. Third, check the 10 ft. maximum horizontal interval in connected wall spaces. Fourth, isolate every wall-to-soffit, dropped-ceiling, cove, and chase connection. Fifth, check the stair-stringer cavity at the top and bottom. Sixth, inspect every service penetration and verify the approved material before cover.

After that first pass, I walk the work again from the perspective of the rough trades. I look for fresh holes, enlarged openings, removed blocks, displaced batt insulation, and products that have not been verified for the application. A small hole can matter because the issue is continuity. The fireblock is only as complete as the route it closes.

I also check access and sequencing. If the only way to repair a soffit connection is blocked by installed ductwork, the correction becomes slower and more expensive. If the approved product needs a particular depth, backing condition, or installation method, I want that information before the cavity becomes crowded. Good coordination protects inspection readiness and avoids unnecessary removal and rework.

For estimating, I do not count only the obvious row of blocks. I include special intersections, connected wall-space divisions, stair locations, penetrations likely to need restoration, approved sealants or insulation where permitted, and the labor to return after rough-in. The purpose of the estimate is not to predict every hole. It is to recognize that fireblocking is a coordinated scope that can be altered by several trades.

The most useful defect-recognition question is still the simplest. Where can hidden air move? I trace from a lower cavity to a higher cavity, from a wall into a soffit, from under a stair toward the landing, and around every pipe or wire that crosses a floor or ceiling line. When the path stops at a continuous approved barrier, the fireblocking logic is working. When the path slips around an edge, through a gap, or into an intersecting void, I have found the place that needs correction.

I want you to leave with 1 compact picture. A concealed cavity can act like a hidden flue, and fireblocking interrupts that route. I check floor and ceiling levels, keep horizontally connected concealed wall spaces within the 10 ft. interval, isolate vertical-to-horizontal interconnections, block between stair stringers at the top and bottom, and close annular spaces around services with approved material.

For materials, I remember the solid options first, then the special insulation rule. 2 in. nominal lumber is the familiar choice. The code also recognizes the specified layered lumber, structural panel, particleboard, gypsum board, and cement-based millboard options. Unfaced fiberglass must be unfaced, full across the cavity, and at least 16 in. high. Loose fill, foam, and caulk are not automatic fireblocks. Their exact tested or listed use has to support the installation.

This is a testable concept based on the CSLB study guide because it sits inside subfloor and wall framing, defect recognition, trade coordination, and inspection readiness. I do not need to guess an individual PSI question to know that the published study outline makes the underlying judgment worth mastering.
