Subfloor Deflection Limits for Tile and Stone

This content is produced by Pass The CSLB, an independent audio-first study companion for busy California B General candidates. I build these lessons from official CSLB study-guide topics and reputable source-backed California materials so you can study on the go. This is exam-prep reinforcement, not legal, professional, engineering, or job-specific advice. Exam content is set by PSI and the CSLB and may change, so always verify current requirements against official CSLB materials. No exam outcome is guaranteed. Now let's get into it.

A floor can satisfy a baseline structural limit and still be the wrong floor for natural stone. That is the central distinction I want you to hold onto. The finish is not simply decoration added after framing. A brittle finish can impose a stricter movement limit than the basic floor structure does.

Think about a joist under load. It bends downward a small amount, even when it is doing its job. The wood can tolerate that movement. Tile, stone, mortar, and grout are much less forgiving. When the supporting floor bends too far, the bonded finish has to follow. The top of the bending member compresses while the lower portion goes into tension. The rigid finish above can crack, loosen, or separate when the movement exceeds what its installation can tolerate.

That does not mean every crack proves excessive joist deflection. The supported movement checks include joist-span bending, between-joist sheathing bending, and horizontal in-plane movement. It means structural deflection belongs near the beginning of the investigation, not at the end after an expensive finish has failed.

Deflection is vertical displacement under load. The common ratio uses the letter L for the clear span of the supporting member. The span is converted to inches and divided by the stated denominator. The result is the greatest movement allowed by that criterion.

The part that trips people up is the denominator. A larger denominator permits less movement. L/720 is not looser than L/360. It is twice as strict because the same span is divided into twice as many parts.

Take a clear span of 15 ft. That is 180 in. Divide 180 by 360, and the result is 0.5 in. Divide the same 180 in. by 720, and the result is 0.25 in. The stone criterion allows only half the movement in that example.

California floor-member tables establish L/360 as the live-load deflection baseline for floors. That baseline is important, but the load description also matters. The Tile Council of North America uses a total-load criterion for ceramic and porcelain tile assemblies. I do not casually swap live load and total load as if they were the same check. I verify the criterion named by the applicable code, plans, approved installation method, manufacturer, or engineer.

Ceramic and porcelain tile assemblies generally use a limit of L/360 under total load. Natural stone over wood framing requires the much stricter limit of L/720.

The comparison on screen uses the same 15-foot span. Ceramic or porcelain at L/360 allows 0.5 in. in the simple example. Natural stone at L/720 allows 0.25 in. Same span, half the movement, twice the stiffness.

That difference is not an arbitrary way to make stone work more difficult. Fired ceramic and porcelain products are manufactured to be comparatively consistent. Quarried stone can contain natural fissures, voids, and variations in density. Those irregularities make its tensile behavior less predictable. The supported practical effect is that natural stone needs a floor with substantially less movement.

Here is a useful field distinction. Passing a rough framing inspection does not automatically approve every later finish choice. The framing may meet the California baseline for a floor while the selected natural-stone installation still needs a stiffer structure. This is a testable concept based on the CSLB study guide because it connects tile and stone work with framing, estimating, sequencing, and defect recognition.

I want you to separate recognition from engineering. As the General B contractor, I recognize the conflict, gather the actual framing and finish information, and coordinate an approved solution. I am not teaching you to invent a joist retrofit from memory or size structural members without the appropriate span tables, plans, or engineering.

There are 2 structural movement checks to keep separate. The first is bending along the joist span across the room. The second is bending of the subfloor sheathing between adjacent joists. A floor can perform well in one direction and still be too flexible in the other.

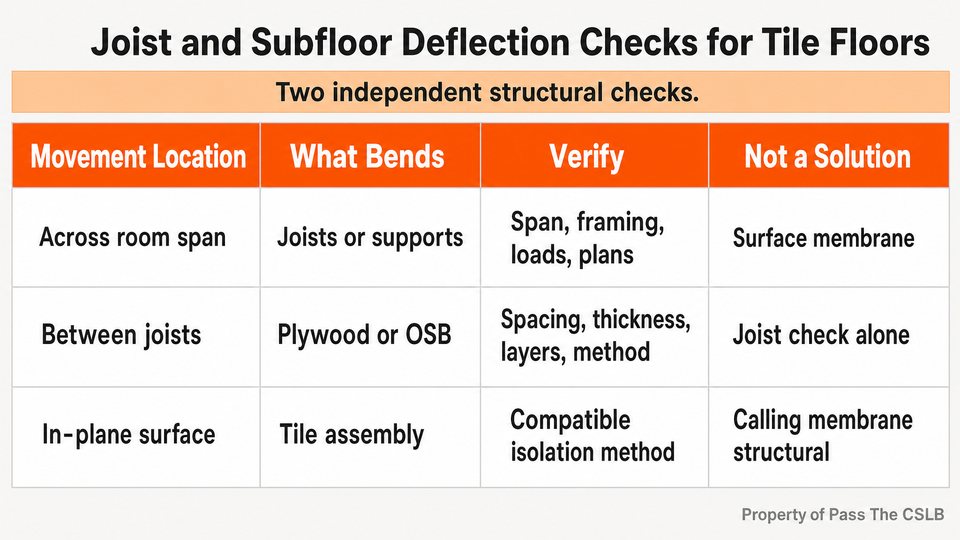

The table separates those checks. For movement across the room, I verify the supporting members, clear span, applicable loads, and approved structural information. For movement between joists, I verify joist spacing, sheathing material and thickness, required layers, and the selected tile or stone method.

Picture a heavy island with a stone top supported on a few small feet. That load is concentrated in limited areas. Even if the joists satisfy their span criterion, thin sheathing across a wide joist bay may bend locally under those points. The tile and grout directly around the load can then be stressed by movement between supports. A cast-iron bathtub can raise the same kind of coordination question. These are not automatic diagnoses, but they are good reasons to check the assembly instead of looking only at the joist span.

For approved interior wood-framed natural-stone methods covered by the Tile Council, the joist spacing is generally limited to no more than 16 in. on center. Certain ceramic tile methods may allow wider spacing when the method specifies a correspondingly stronger subfloor assembly. That is not permission to assume every ceramic tile can go over 19.2-in. or 24-in. spacing. The exact installation method and its sheathing requirements still control.

This is why I do not use the phrase strong enough without defining what has been checked. A joist-span calculation does not verify between-joist stiffness. A thicker subfloor does not prove the joists meet the required span limit. I need both answers before a brittle finish is treated as ready.

The finish assembly also adds dead load. Dead load is the weight that remains on the structure, including the tile or stone, mortar, backer, membrane, or mortar bed used by the selected method. A heavy mortar-bed system can add far more weight than a thin membrane system. I verify those loads as part of the chosen assembly instead of assuming all tile floors weigh the same.

Suppose a homeowner wants to replace sheet vinyl in a 2nd-story bathroom with travertine. That is a hypothetical project, but the supervisory decision is real. Before the tile crew mobilizes, I identify the stone, the approved installation method, the existing joist span and spacing, the subfloor construction, and any concentrated loads.

If the available records only prove the floor meets the basic L/360 live-load limit, I do not treat that as proof of readiness for natural stone. I pause the finish work and obtain the appropriate verification. Depending on the project, that may come from approved plans, applicable span information, the installation method, the manufacturer, or a qualified structural professional.

If a structural change is required, I coordinate it before the work is concealed or the stone is installed. I also update scope, cost, schedule, inspections, and trade sequencing. The expensive mistake is not merely selecting the wrong number. It is allowing procurement and finish labor to move forward while the structural question remains unresolved.

I use the same discipline on new construction. The finish schedule needs to reach the framing and estimating decisions early enough to matter. A late change from a light floor covering to stone is not just a color selection. It can change framing verification, subfloor layers, elevation at adjoining finishes, dead load, labor, and inspection coordination.

When reviewing a floor, I ask a short series of practical questions. What is the exact finish, ceramic, porcelain, or natural stone? What load and deflection criterion applies to the selected assembly? What is the actual clear span and joist spacing? What sheathing and layers are present? Are there heavy concentrated loads? Which approved document confirms the complete installation?

Those questions keep the responsibility at the right level. I recognize the condition, verify the source, and coordinate the people authorized to resolve it. I do not turn a field observation into unsupported structural design.

A crack-isolation membrane does not make a bouncing floor structurally stiffer. This confusion deserves a clean line. A compatible membrane can help isolate the tile from certain horizontal, in-plane movement in the substrate. It does not add meaningful resistance to vertical joist bending or weak sheathing between supports.

Imagine placing a membrane over a floor that visibly flexes under foot traffic. The membrane may separate some surface movement from the tile, but it cannot shorten the joist span, reduce the joist spacing, or increase the bending stiffness of the wood assembly. If the problem is vertical movement, the solution has to address the structure and the approved installation method.

Failure patterns can guide an investigation, but I avoid pretending that one crack gives a complete diagnosis. Repeated cracking near a concentrated load may point toward local subfloor movement. Widespread cracking or loose tile may justify checking broader framing and assembly conditions. A visible crack alone does not establish which movement mechanism is responsible. I verify joist-span deflection, between-joist stiffness, and the selected method before assigning cause.

The most useful memory connection is simple. A membrane manages compatible movement within its listed purpose. It is not a replacement joist. If the floor bends too much, adding a surface product does not erase the structural check.

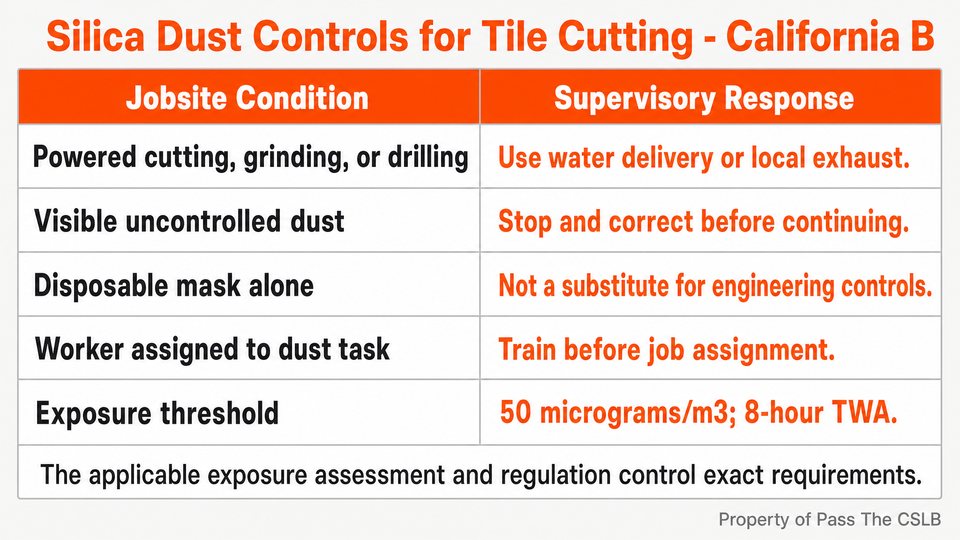

Structural readiness is only part of supervising tile and stone work. Powered cutting, grinding, and drilling of tile, stone, concrete, masonry, and cementitious backer products can release respirable crystalline silica. California occupational safety rules require control of that dust at the source when the covered operation calls for it.

The preferred supervisory response is an active dust-reduction system, such as integrated water delivery or local exhaust ventilation with high-efficiency particulate air filtration. A disposable dust mask by itself is not a substitute for required engineering controls.

The California permissible exposure limit identified in the source material is 50 micrograms/m³, calculated as an 8-hour time-weighted average. The regulation also requires hazard training before a worker is assigned to covered dust-generating work. I do not use visible dust as the only measure of exposure, and I do not wait for a cloud to fill the room before correcting an uncontrolled operation.

Suppose a tile subcontractor begins dry cutting porcelain and cement backer board inside an enclosed garage, and visible dust starts accumulating. That is a hypothetical jobsite condition. I stop the uncontrolled operation, require the applicable dust-reduction method, confirm training and work practices, and allow work to resume only when the operation complies with the governing requirements. Moving outdoors may improve general ventilation, but it does not automatically replace the required source control.

The same supervisory habit applies here as it does to deflection. Identify the condition before production continues. Verify the applicable requirement. Correct the method at the source. Document and coordinate rather than relying on assumptions.

I want you to leave with one sequence. Start with the finish choice, then verify the structure, then verify the complete installation method, and then control the cutting operation. Natural stone is not simply ceramic tile with a higher price. Over wood framing, its L/720 criterion permits only half the movement allowed by L/360. The joist span and the sheathing between joists are separate checks. A surface membrane does not replace either one. During cutting, source control comes before relying on a mask alone.
